Overview
推荐系统最核心的部分在于排序算法,也就是我们说的CTR预估
问题。这部分算法在最近几年发展迅速,我们这篇文章,希望用经典的criteo
数据集,和TensorFlow 2.0
中的Keras
模块,来演示一下DeepFM
是怎么做CTR预估
的。
1. 准备数据
在这里下载criteo
数据集:Download Kaggle Display Advertising Challenge Dataset。
或者直接在终端下载,然后解压:
1 2 3 4 | mkdir criteo cd criteo wget https: //s3-eu-west-1 .amazonaws.com /kaggle-display-advertising-challenge-dataset/dac . tar .gz tar -zxvf dac. tar .gz |
这个数据集,训练集40,000,000
行,从readme.txt
中可以知道数值型特征的有13
个,类别型特征有26
个,特征名称未提供,样本按时间排序。测试集6,000,000
行,不含label
。解压后,可以看到训练集是11.1G
,测试集是1.46G
。当前这个单机是打不开的。那我们就读取1,000,000
条训练集好了。
1 2 | head -n 1000000 train.txt > criteo_sampled_data.csv cd .. |
2. 加载并处理数据
首先把抽样过的数据加载到内存:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 | import numpy as np import pandas as pd from sklearn.preprocessing import LabelEncoder, MinMaxScaler import tensorflow as tf from tensorflow.keras import regularizers from tensorflow.keras.layers import * from tensorflow.keras.models import Model from tensorflow.keras.utils import plot_model import tensorflow.keras.backend as K from tensorflow.keras.callbacks import TensorBoard import matplotlib.pyplot as plt % matplotlib inline data = pd.read_csv( 'criteo/criteo_sampled_data.csv' , sep = '\t' , header = None ) data.head() |
我们给数据加上列名:
1 2 3 4 5 6 | label = [ 'label' ] dense_features = [ 'I' + str (i) for i in range ( 1 , 14 )] sparse_features = [ 'C' + str (i) for i in range ( 1 , 27 )] name_list = label + dense_features + sparse_features data.columns = name_list data.head() |
2.1 处理连续型特征
1 2 3 4 5 | # 数值型特征空值填0 data[dense_features] = data[dense_features].fillna( 0 ) # 数值型特征归一化 scaler = MinMaxScaler(feature_range = ( 0 , 1 )) data[dense_features] = scaler.fit_transform(data[dense_features]) |
2.2 处理稀疏类别特征
1 2 3 4 | data[sparse_features] = data[sparse_features].fillna( "-1" ) for feat in sparse_features: lbe = LabelEncoder() data[feat] = lbe.fit_transform(data[feat]) |
3. 建模训练

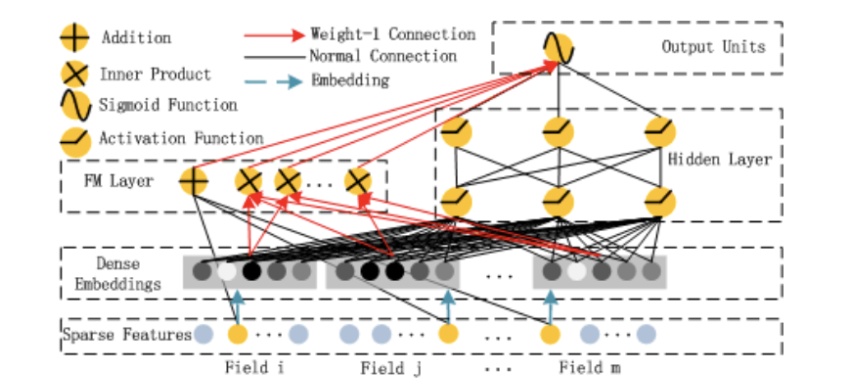

这个部分就是DeepFM
模型的精髓所在。算法原理如图所示。
DeepFM
模型是对Wide&Deep
模型的改进。左边FM
层和右边DNN
层共享了Embedding
层。
3.1 处理一阶特征
首先,数值型特征可以直接变成tensorflow.keras.layers.Input
单元。
1 2 3 4 5 | dense_inputs = [] for fea in dense_features: _input = Input ([ 1 ], name = fea) dense_inputs.append(_input) dense_inputs |
数值型特征的生成的输入单元如下:
[<tf.Tensor 'I1:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I2:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I3:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I4:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I5:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I6:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I7:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I8:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I9:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I10:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I11:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I12:0' shape=(None, 1) dtype=float32>, <tf.Tensor 'I13:0' shape=(None, 1) dtype=float32>]
连接成为稠密层:
1 2 | concat_dense_inputs = Concatenate(axis = 1 )(dense_inputs) first_order_dense_layer = Dense( 1 )(concat_dense_inputs) |
其次,处理稀疏类别型特征。
1 2 3 4 | sparse_inputs = [] for fea in sparse_features: _input = Input ([ 1 ], name = fea) sparse_inputs.append(_input) |
我们需要将稀疏特征Embedding
成为稠密特征,需要用到tensorflow.keras.layers.Embedding
模块,然后将其打平,这里是第一次对稀疏特征做Embedding
,且映射成为长度为1
的向量(还有一次映射):
1 2 3 4 5 6 7 | sparse_1d_embed = [] for i, _input in enumerate (sparse_inputs): f = sparse_features[i] voc_size = data[f].nunique() _embed = Flatten()(Embedding(voc_size + 1 , 1 , embeddings_regularizer = regularizers.l2( 0.5 ))(_input)) sparse_1d_embed.append(_embed) sparse_1d_embed |
稀疏特征的生成的输入单元如下:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 | [<tf.Tensor 'flatten/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_1/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_2/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_3/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_4/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_5/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_6/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_7/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_8/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_9/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_10/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_11/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_12/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_13/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_14/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_15/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_16/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_17/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_18/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_19/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_20/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_21/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_22/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_23/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_24/Identity:0' shape = ( None , 1 ) dtype = float32>, <tf.Tensor 'flatten_25/Identity:0' shape = ( None , 1 ) dtype = float32>] |
累加起来:
1 | first_order_sparse_layer = Add()(sparse_1d_embed) |
线性部分合并,即稠密层单元和稀疏层一维映射过的单元继续累加起来:
1 | linear_part = Add()([first_order_dense_layer, first_order_sparse_layer]) |
3.2 二阶特征
这里,我们只考虑稀疏特征映射后的二阶交叉,第二次对稀疏特征进行Embedding
,映射到8
维。其二阶FM
的公式为:
n∑i=1n∑j=i+1⟨vi,vj⟩xixj=12k∑f=1[(n∑i=1Vif)2−n∑i=1V2if]
1 2 3 4 5 6 | sparse_kd_embed = [] for i, _input in enumerate (sparse_inputs): f = sparse_features[i] voc_size = data[f].nunique() _embed = Embedding(voc_size + 1 , k, embeddings_regularizer = regularizers.l2( 0.7 ))(_input) # 这里不要Flatten打平 sparse_kd_embed.append(_embed) |
第一步,把所有的8
维向量拼接起来:
1 | concat_sparse_kd_embed = Concatenate(axis = 1 )(sparse_kd_embed) |
得到一个(26,8)
的矩阵。
第二步,对该矩阵进行求和的平方:
1 2 | sum_kd_embed = Lambda( lambda x: K. sum (x, axis = 1 ))(concat_sparse_kd_embed) square_sum_kd_embed = Multiply()([sum_kd_embed, sum_kd_embed]) |
第三步,对该矩阵进行求平方和:
1 2 | square_kd_embed = Multiply()([concat_sparse_kd_embed, concat_sparse_kd_embed]) sum_square_kd_embed = Lambda( lambda x: K. sum (x, axis = 1 ))(square_kd_embed) |
第四步,求差除以2
,再求和。
1 2 3 | sub = Subtract()([square_sum_kd_embed, sum_square_kd_embed]) sub = Lambda( lambda x: x * 0.5 )(sub) second_order_sparse_layer = Lambda( lambda x: K. sum (x, axis = 1 , keepdims = True ))(sub) |
至此,我们的FM
部分完成。
3.3 DNN
层
首先,我们把第二次Embedding
之后的26
个8
维向量打平。
1 | flatten_sparse_embed = Flatten()(concat_sparse_kd_embed) |
然后,添加hidden layer
并加上dropout
:
1 2 3 4 | fc_layer = Dropout( 0.5 )(Dense( 256 , activation = 'relu' )(flatten_sparse_embed)) fc_layer = Dropout( 0.3 )(Dense( 256 , activation = 'relu' )(fc_layer)) fc_layer = Dropout( 0.1 )(Dense( 256 , activation = 'relu' )(fc_layer)) fc_layer_output = Dense( 1 )(fc_layer) |
至此,DNN
层结束。
3.4 合并输出层
我们把一阶部分和二阶部分,DNN
输出层这三部分合并累加,然后用sigmoid
函数将其和变成一个概率值。
1 2 | output_layer = Add()([linear_part, second_order_sparse_layer, fc_layer_output]) output_layer = Activation( "sigmoid" )(output_layer) |
3.5 编译模型
模型构建:
1 | model = Model(dense_inputs + sparse_inputs, output_layer) |
打印出各单元和节点的关系图:
1 | plot_model(model, "deepfm.png" ) |
查看网络结构:
1 | model.summary() |
编译模型:
1 2 3 4 5 6 7 8 9 10 11 | model. compile (optimizer = "adam" , loss = "binary_crossentropy" , metrics = [ "binary_crossentropy" , tf.keras.metrics.AUC(name = 'auc' )]) tbCallBack = TensorBoard(log_dir = './logs' , # log 目录 histogram_freq = 0 , write_graph = True , # write_grads=True, write_images = True , embeddings_freq = 0 , embeddings_layer_names = None , embeddings_metadata = None ) |
训练集和验证集按照8:2
的比例划分:
1 2 | train_data = data.loc[: 800000 - 1 ] valid_data = data.loc[ 800000 :] |
处理稠密特征和稀疏特征,一定要分开处理:
1 2 3 4 5 6 7 | train_dense_x = [train_data[f].values for f in dense_features] train_sparse_x = [train_data[f].values for f in sparse_features] train_label = [train_data[ 'label' ].values] val_dense_x = [valid_data[f].values for f in dense_features] val_sparse_x = [valid_data[f].values for f in sparse_features] val_label = [valid_data[ 'label' ].values] |
模型训练:
1 2 3 4 5 | model.fit(train_dense_x + train_sparse_x, train_label, epochs = 5 , batch_size = 256 , validation_data = (val_dense_x + val_sparse_x, val_label), callbacks = [tbCallBack] ) |
输出训练过程:
1 2 3 4 5 6 7 8 9 10 | Epoch 1 / 5 3125 / 3125 [ = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = ] - 182s 58ms / step - loss: 30.0034 - binary_crossentropy: 0.5280 - auc: 0.6819 - val_loss: 0.6106 - val_binary_crossentropy: 0.5108 - val_auc: 0.7098 Epoch 2 / 5 3125 / 3125 [ = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = ] - 181s 58ms / step - loss: 0.6243 - binary_crossentropy: 0.5168 - auc: 0.7051 - val_loss: 0.6414 - val_binary_crossentropy: 0.5092 - val_auc: 0.7157 Epoch 3 / 5 3125 / 3125 [ = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = ] - 181s 58ms / step - loss: 0.6395 - binary_crossentropy: 0.5135 - auc: 0.7116 - val_loss: 0.6570 - val_binary_crossentropy: 0.5126 - val_auc: 0.7205 Epoch 4 / 5 3125 / 3125 [ = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = ] - 180s 58ms / step - loss: 0.6475 - binary_crossentropy: 0.5123 - auc: 0.7143 - val_loss: 0.6674 - val_binary_crossentropy: 0.5059 - val_auc: 0.7229 Epoch 5 / 5 3125 / 3125 [ = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = ] - 181s 58ms / step - loss: 0.6463 - binary_crossentropy: 0.5113 - auc: 0.7165 - val_loss: 0.6479 - val_binary_crossentropy: 0.5055 - val_auc: 0.7247 |
至此,DeepFM
已经用TensorFlow 2.0
实现。
